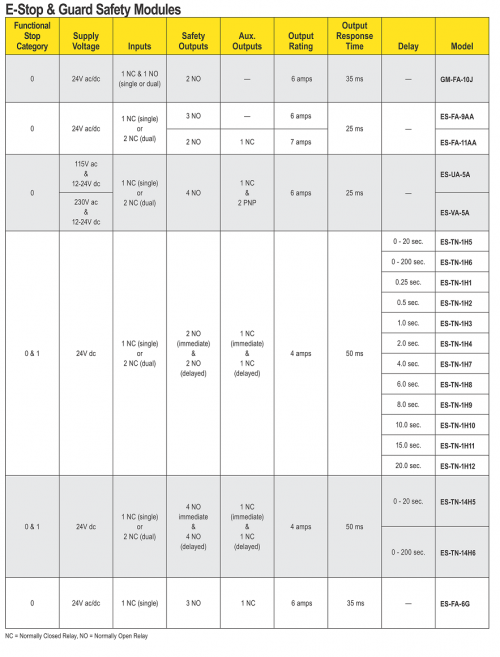

E-Stop & Interlocked Guard

• Modules monitor external devices for proper operation, contact failure or wiring faults
• Module goes into lockout mode if fault is detected
• Available voltages include 24V ac/dc; 24V dc; 115V ac or 12-24V dc; or 230V ac or 12-24V dc
• Modules serve to monitor positive-opening E-stop and interlocking switches
• Non-safety outputs are available on most modules
• Modules are available with an adjustable output delay of 0-20 or 0-200 seconds
• Modules offer reset options: Automatic, manual and monitored manual (depending on model)
• Ratings are NEMA 1 and at least IEC IP20

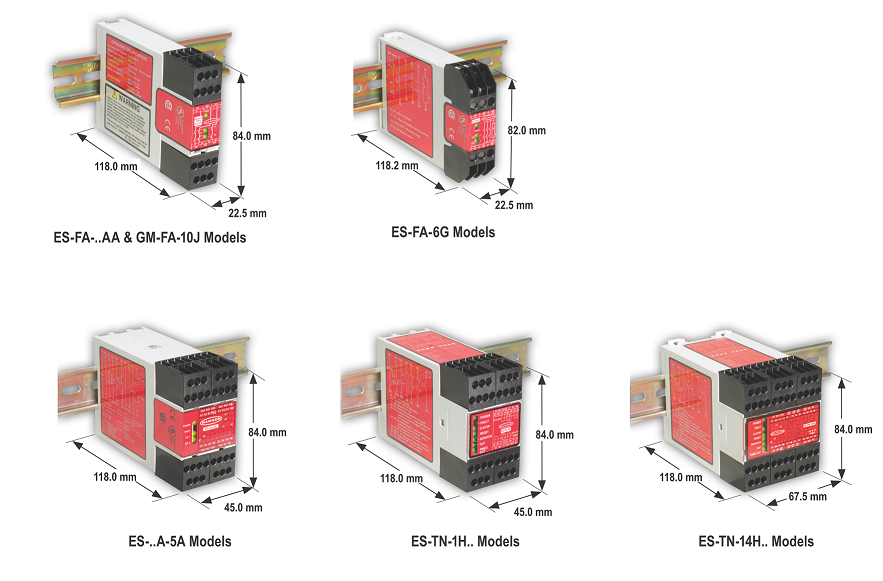

• Housings are rugged polycarbonate and mount to standard 35 mm DIN rail
